SPLR-D40-5K

Round LED Panel, 40cm, 32W, 5000K

Direct link to this product's page

— Modern Surface Round Thick Aluminum Frame

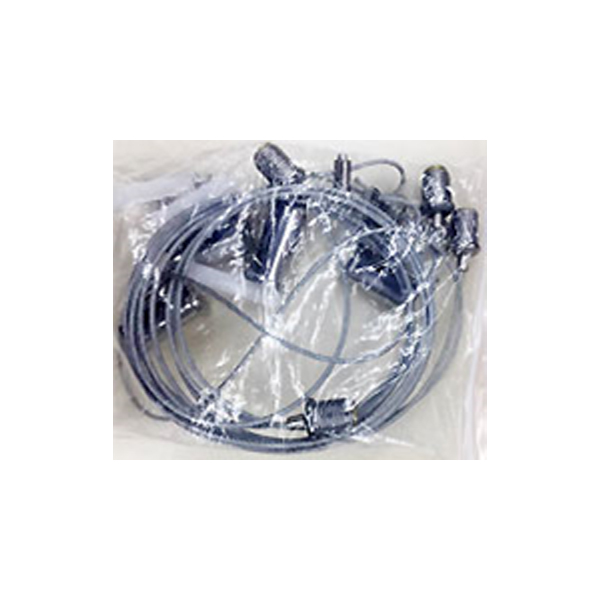

Ceiling Pendant Fitting (INCLUDED), distance from ceiling: 45mm + 20mm
— 32W - CCT=5000K
— 10B9Cx2 = 27VDC - 180LEDs
— Power: CC Driver 27V - max-0.85A, Recommended Driver: max. 800mA
— 2835 LEDs Lighting from the side
— CRI (RA): >80, Beam Angle: 120°
— Japan Mitsubishi PMMA - LGP
— 100% Clear acrylic Light Guide Plate
— Japan TORAY Reflector
— Taiwan CHIMEI Diffueser
— Power connector: 1x MALE 5.5x2.1x10mm DC Plug
— LED DRIVER not Included
— Wide variety of LED drivers, various dimming modes:
DALI, KNX, DMX, 0-10V, PWM, Rx, PUSH, ON/OFF
— IP44
— Size: Ø400 mm x (20+45) mm, 3 kg
— 5 Years Warranty













Size: Ø1000mm x (20+45)mm, 10Kg
