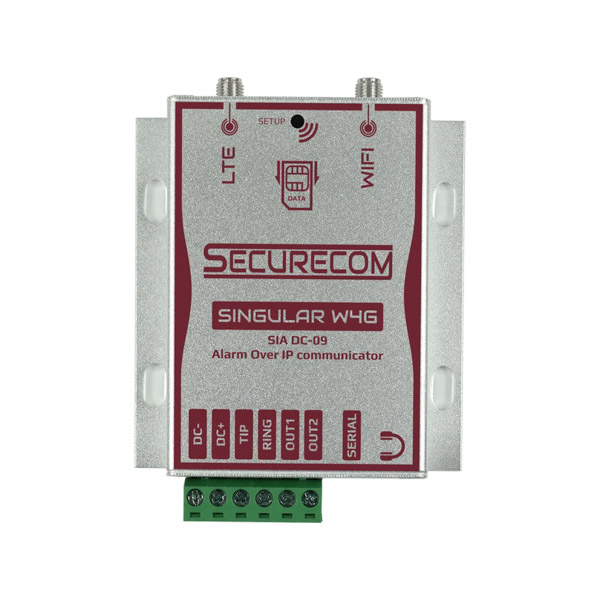

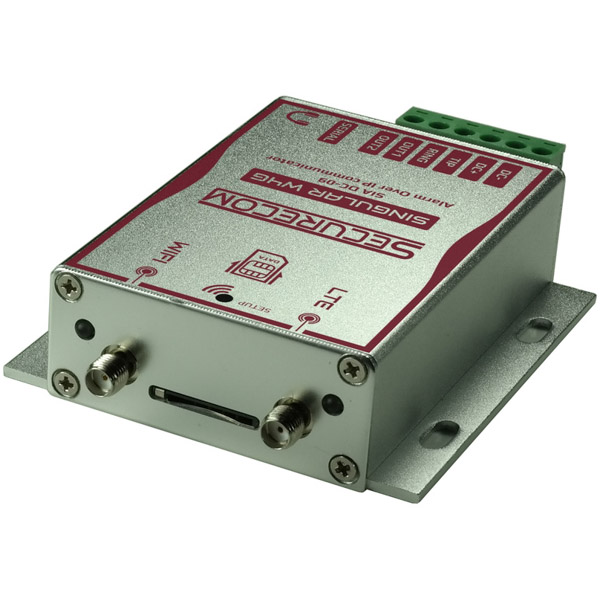

SINGULAR W4G

IP based communicator with WiFi/ 4G LTE connection

Direct link to this product's page

The device interprets Contact-ID or SIA FSK protocol (over simulated phone line), and translates to SIA DC-09 IP-based format, then sends it to the address of the set-up telemonitoring receivers.

Signaling exclusively depends on the existence of the permanent WiFi connection, thus several WiFi access points can be set up to handle any possible router or service errors.

In order to keep the higher security level, has 4G mobile communication extension, too.

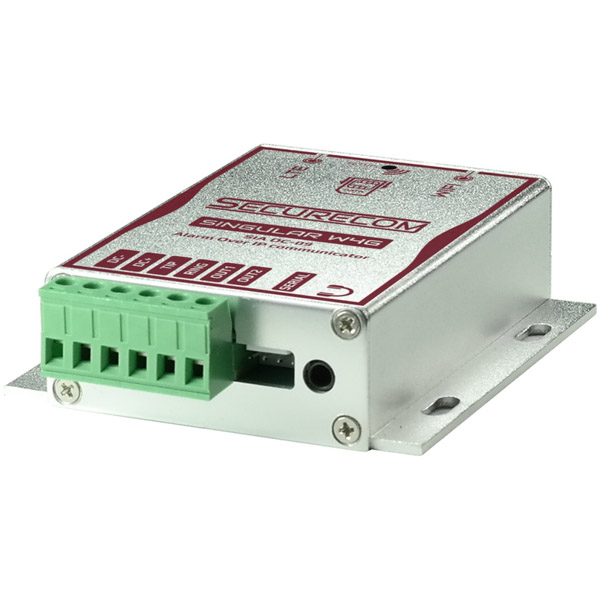

— Elegant design, with metal housing (75x90x25 mm)
— Wide Voltage range ( 9-30V DC)
— Conection to Alarm panel through Ring/TIp terminals (emulates phone line)
— Forwards Contact ID report from alarm panel to IP receiver
— Audio output for listen-in with simple headphones

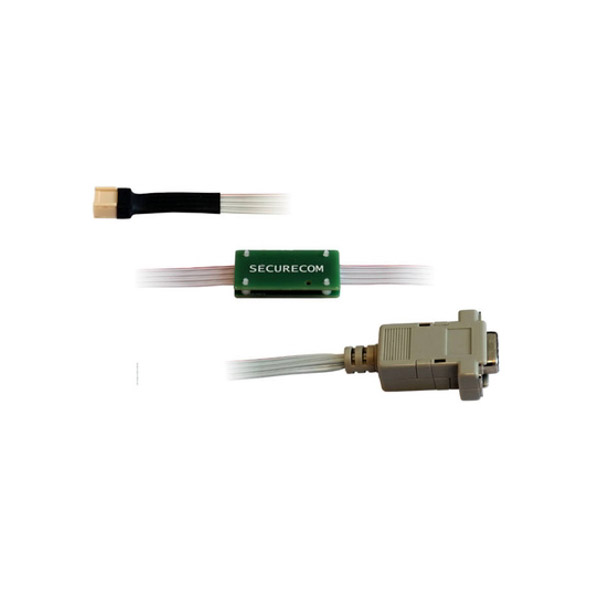

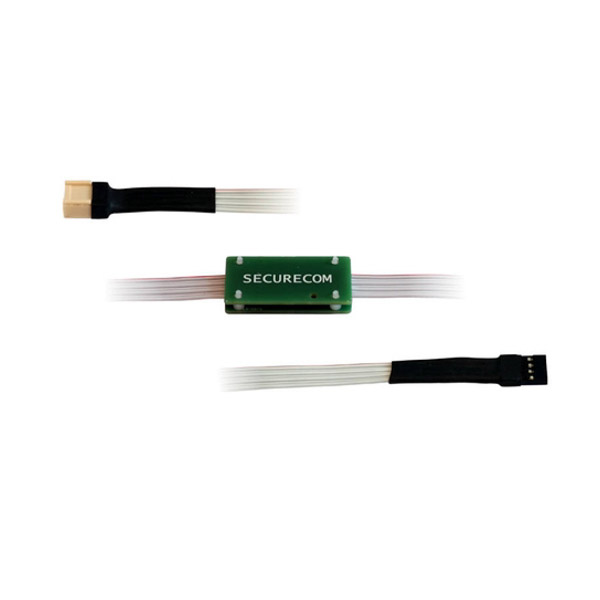

— Transparent serial port for alarm remote programming

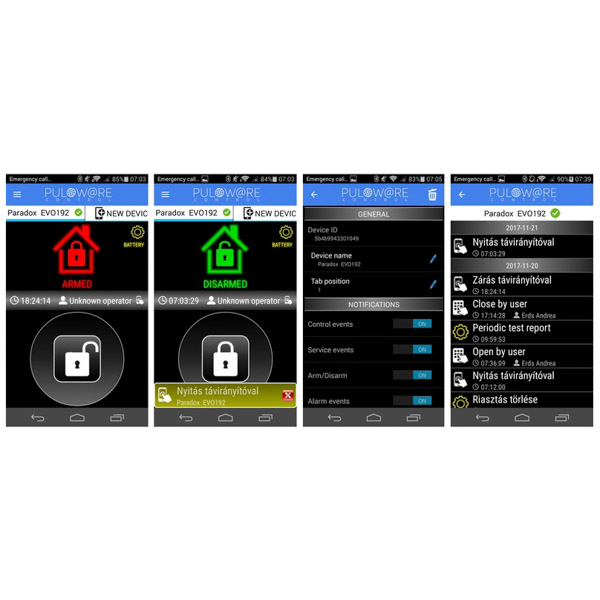

— Two separate contact outputs ( open collector), controllable from Smartphone/Server site
— Backup TCP/IP connection through LTE/HSPA/GPRS networks
— Account and dialed phone number special features ( reporting direction and authentification)
— High range Wireless network ( 802.11 b/g/n)
— Complete Programming from browser, initial through personal hot spot
— Delivered with two antennas
